Solutions provided by eSOL

• Software Development Kit (SDK) and technical support
• Customer support for development and certification through engineering services

Software Development Kit (SDK)
The CC-Link IE TSN protocol stack and sample applications are provided as an SDK. Using the SDK enables rapid application development. eSOL provides the following two types of SDKs:

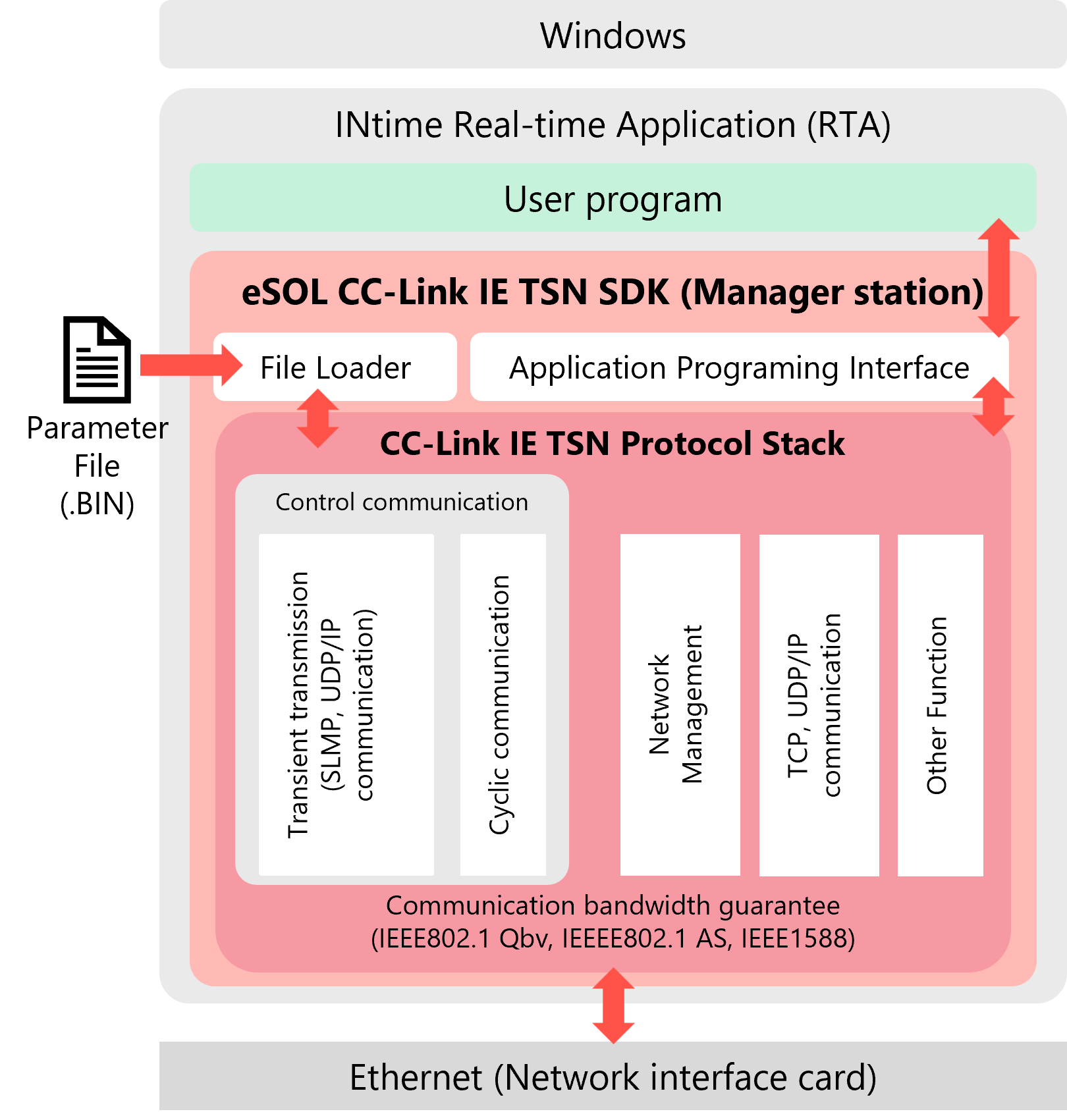

1. eSOL CC-Link IE TSN SDK (Manager)

• Compliant with CC-Link IE TSN standard
  　- Manager station Class B support
• High Versatility
  　- Runs on Windows-based industrial PCs and embedded platforms such as the RZ family
  　- Supports Visual Studio as a development environment
  　- Supports CANopen-compatible APIs
  　- Supports a wide range of OSs (INtime, Linux, RTOS, etc.)
• High Performance
  　- Runs on an RTOS (INtime) that coexists with Windows
  　- Uses high-precision clock via Intel Ethernet Controller I210

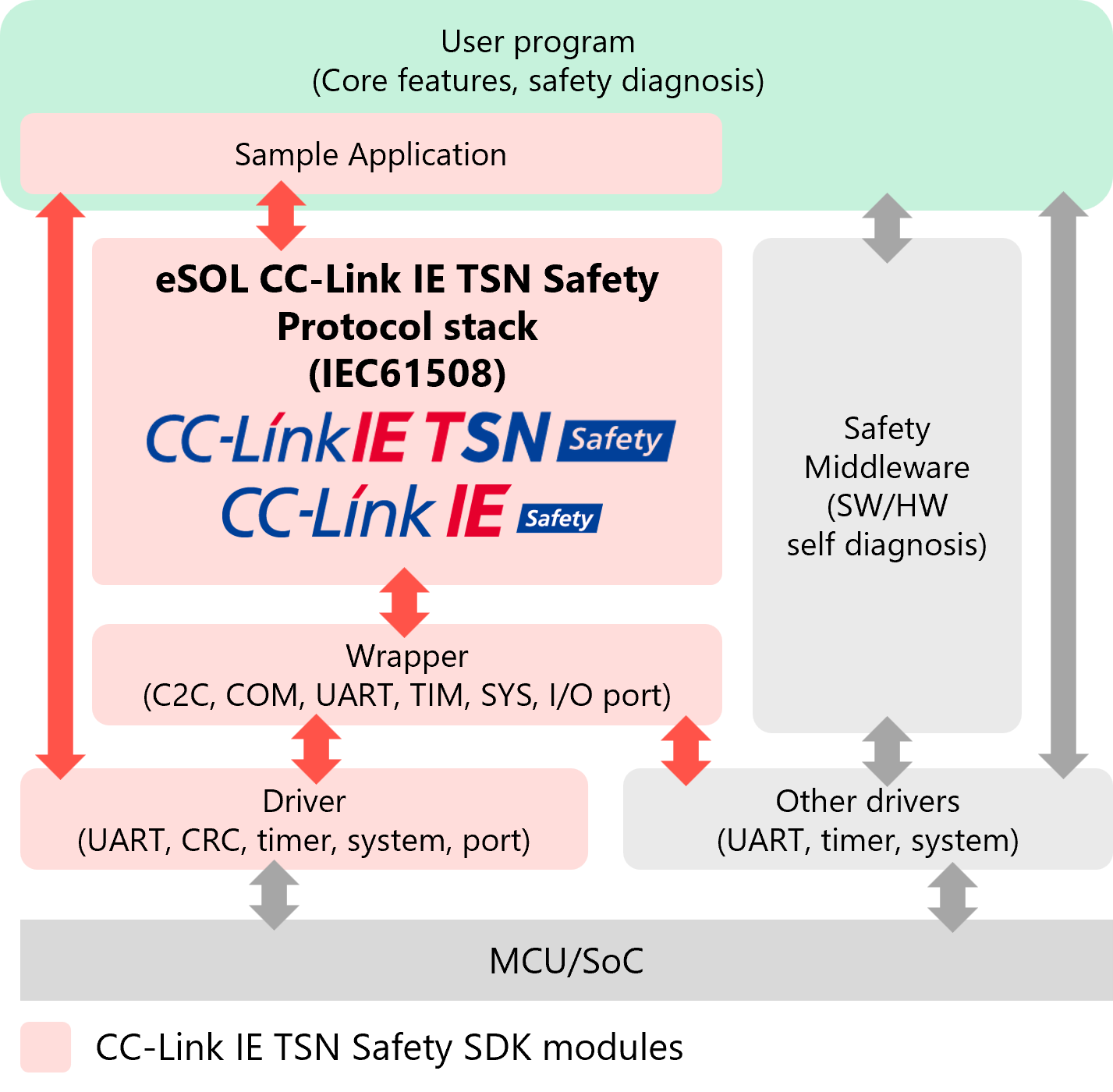

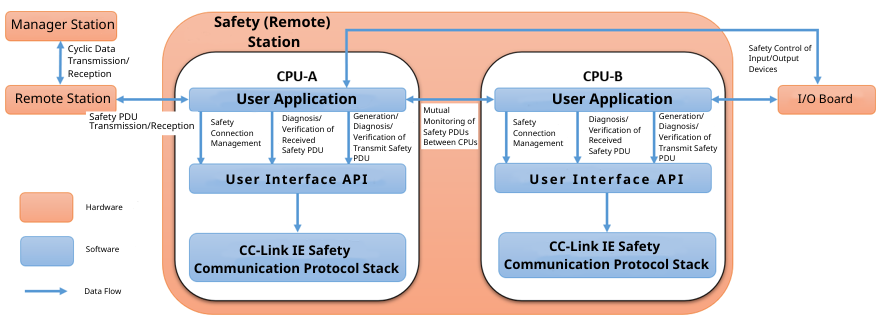

2. eSOL CC-Link IE TSN Safety SDK

• CPU/OS Independent
  　- CPU operation track record: Renesas Electronics RX72N, RX71M, RX651, RX631, RX111
• High Quality
  　- The CC-Link IE TSN Safety protocol stack is IEC 61508 certified
  　- Operation verified via CLPA Safety Communication Function Conformance Test
  　- Operating Environment: Renesas Electronics
  　- Industrial Functional Safety Reference Board

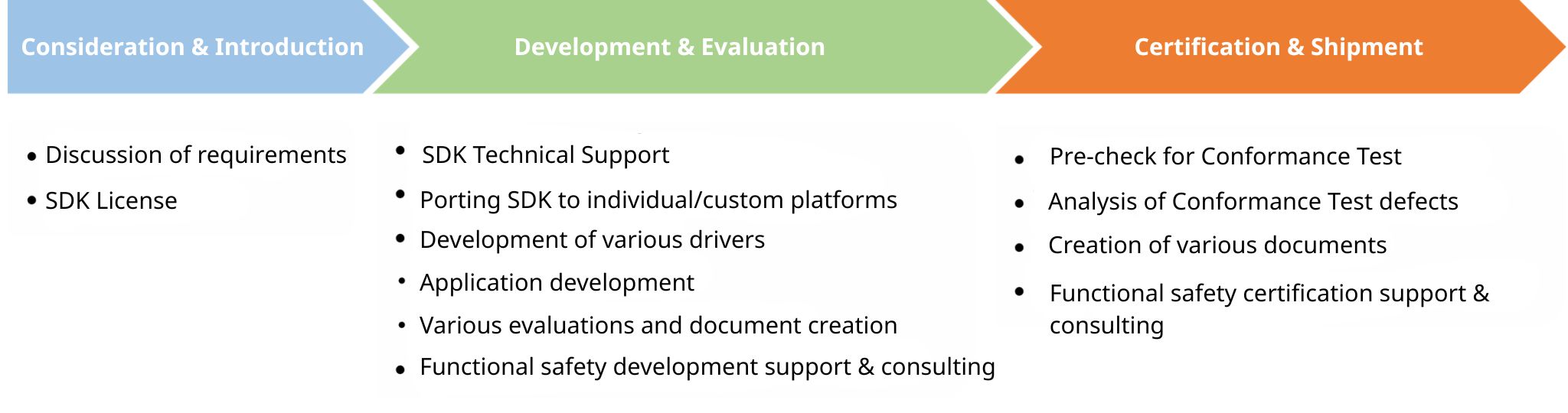

CC-Link IE TSN Related Services

• Support
  　- Q&A support for SDK (Annual contract)
• Various Contract Development
  　・Porting to customer environment
  　　- Porting to various OSs
  　　- Porting to various microcontrollers
  　・CC-Link Association Certification Acquisition Support
  　　- Support for pre-checking of Conformance tests
  　　- Analysis of Conformance test defects
